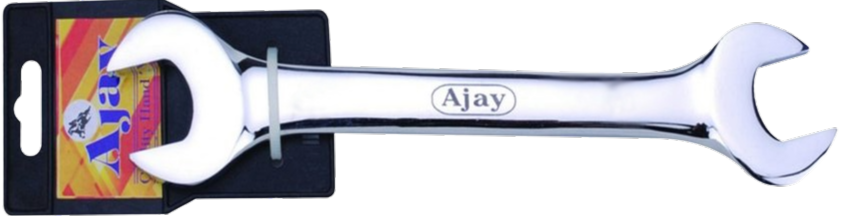

  • AJ-100 · General Purpose Series

Lorem ipsum
consectetur adipiscing elit

Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.
  • HSN 82041110
  • Standard IS 2028:2026 / DIN 895
  • Code 00101
  • Code 00130
  • Material C.S. / Cr-V Steel
  • Specification
  • HSN 8204.1110

Classified & Compliant

Filed under HSN code 8204.1110 for hand-operated spanners and wrenches — ready for GST-compliant billing on every order.

  • IS 2028:2026 / DIN 895

Dual Standard Reference

Dimensions and jaw tolerances are referred against Indian Standard IS 2028:2026, cross-checked with the German DIN 895 spanner series.

  • Cr-V Steel

Built to Last

Forged from C.S. / Chrome Vanadium Steel, hardened & tempered for strength, then nickel chrome plated to resist corrosion and wear.

  • 6×7 → 27×32 mm

41 Sizes, Two Ranges

38 general-purpose sizes in metric, WW, and layman marking, plus a 3-size WW mirror-polish range — one spanner covers two jaw sizes.

  • Full Range

Size & Packing Chart

All 38 general-purpose AJ-100 variants with MRP and carton packing. Tap a column heading to sort, or search by size.
Size (mm) Size (WW) Layman MRP ₹ Inner Box Master Carton
6x7 — — ₹26 10 600
6x8 — — ₹30 10 600
7x8 — — ₹30 10 600
8x9 — — ₹33 10 600
8x10 — — ₹34 10 600
9x10 — — ₹35 10 600
9x11 — — ₹35 10 600
10x11 1/8x3/16 1.1/2x2 ₹35 10 600
10x12 — — ₹40 10 600
10x13 — — ₹45 10 500
11x13 — — ₹50 10 500
12x13 3/16x1/4 2x2.1/2 ₹42 10 500
12x14 — — ₹45 10 300
13x14 — — ₹47 10 300
13x15 — — ₹70 10 300
13x17 — — ₹58 10 240
14x15 1/4x5/16 2.1/2x3 ₹47 10 300
14x17 — — ₹59 10 240
16x17 5/16x3/8 3x3.1/2 ₹58 10 240
16x18 — — ₹85 10 200
17x19 — — ₹72 10 200
18x19 3/8x7/16 3.1/2x4 ₹76 10 200
— 5/16x7/16 3x4 ₹72 10 200
18x21 — — ₹100 10 200
19x21 — — ₹89 5 200
19x22 — — ₹89 5 160
19x24 — — ₹110 5 120
20x22 7/16x1/2 4x4.1/2 ₹89 5 160
21x23 — — ₹116 5 120
— 7/16x9/16 4x5 ₹115 10 120
22x24 — — ₹118 5 120
24x26 1/2x9/16 4.1/2x5 ₹140 5 100
24x27 — — ₹140 5 100
25x28 9/16x5/8 5x5.1/2 ₹163 5 80
24x30 — — ₹375 5 60
27x30 — — ₹375 5 60
27x32 5/8x3/4 5.1/2x7 ₹180 5 60
30x32 9/16x11/16 5x6 ₹191 5 60
— 11/16x3/4 6x7 ₹194 5 60
Size (mm) Size (WW) Layman MRP ₹ Inner Box Master Carton
— 3/16x1/4 — 60 10 500
— 1/4x5/16 — 60 10 500
— 5/16x3/8 — 91 10 200

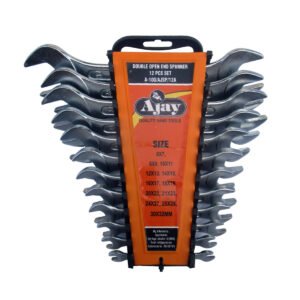

  • Packing type: Sets in Box Packing (General Purpose)
  • Bulk Ordering

Packed for Distribution

5–10PCS / INNER BOX

Inner Box

Smaller sizes ship 10 to a box, larger sizes from 19×21 mm upward ship 5 to a box — matched to weight and shelf display.

60–600PCS / INNER BOX

Master Carton

Carton quantities scale down as sizes grow, from 600 pcs for compact 6×7 mm spanners to 60 pcs for the heaviest 27×32 mm.

  • Bulk & Dealer Enquiry

Stock the full AJ-100 range

Tell us the sizes and quantities you need. We’ll get back with current MRP, dealer pricing, and carton availability.

We typically respond within one business day.
